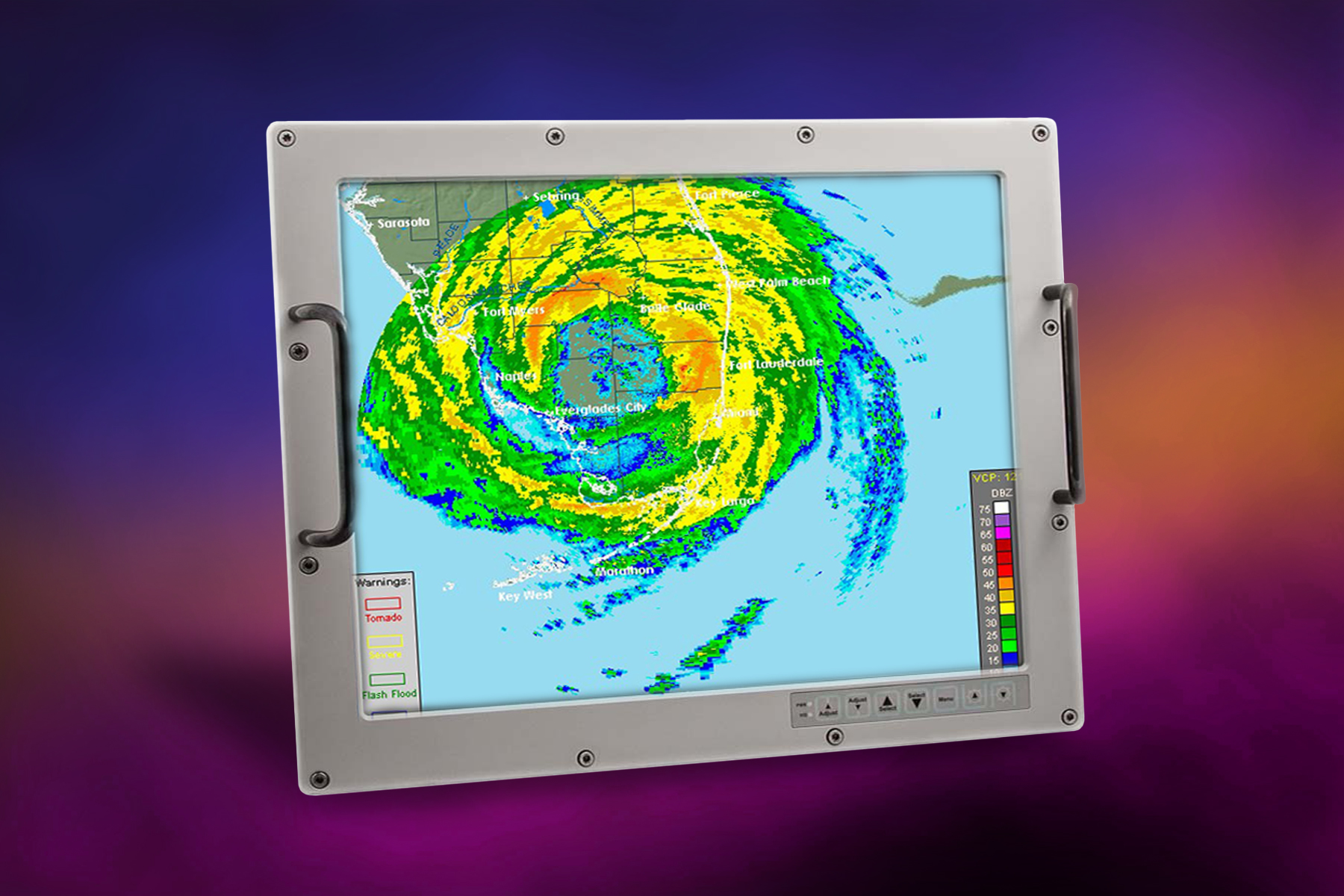

New 25.5" WUXGA Large Format Display from IEE Offers 1980x1200 Resolution; Wide Viewing Angles

Display features 10% more height than full HD

Van Nuys, Calif. October 2013 – IEE, Inc., specializing in enhanced display technologies for military/aerospace, industrial and retail applications, now offers a rugged, 25.5” WUXGA display with 1980x1200 resolution offering 10% more height than a standard full HD monitor. This display has been designed within IEE’s enhance lifecycle management program to ensure its availability for a minimum of seven years, a key benefit for IEE’s industrial and military/aerospace customers.

The lightweight, machined aluminum unit is constructed for a variety of rugged applications, especially airborne consoles and mobile command stations. The front-facing, sealed OSD switches withstand harsh environmental elements while providing full control of display parameters, including brightness, contrast, size and position.

The high resolution and wide 25.5” viewing area offers exceptional flexibility for simultaneous access to critical information. In one application, full HD content can run concurrently and unobstructed with 12 lines of “banner text” along the bottom of the screen.

In cases where this display is used as a replacement or technology enhancement in existing systems, the WUXGA resolution can be configured to replicate multiple legacy 4:3 displays within screen partitions or tiles. The display accepts two DVI video inputs that the user can easily toggle between using panel keys.

“The demand to incorporate leading-edge functionality into a large format display has been overwhelming,” said Steve Motter, VP of Business Development at IEE. “Our customers rely on our expertise in building the highest quality displays available and, with the new 25.5” WUXGA display, we’re able to merge the highest quality graphics with enhanced display capabilities.”

Technical Features: · Native luminance of 350 cd/m2 · Contrast ratio of 1500:1 · Digitally-controlled dimming system with a 250:1 ratio · Operating temperature of -20°C to +70°C · Typical power consumption of 45W · MTBF is more than 40,000 hours · Dual, switchable DVI digital video interface, implemented via a military-grade circular connector

Options: · High-bright 600 cd/m2 to 800 cd/m2 for daylight readability and NVIS goggle compatible bezel and display backlighting · Touch screen technologies including surface capacitive (SCAP), projected capacitive (PCAP), infrared (IR) and resistive · Photoptic Feedback System for automatic dimming capabilities

For more information call 800-422-0867, visit or e-mail: (link sends e-mail).
